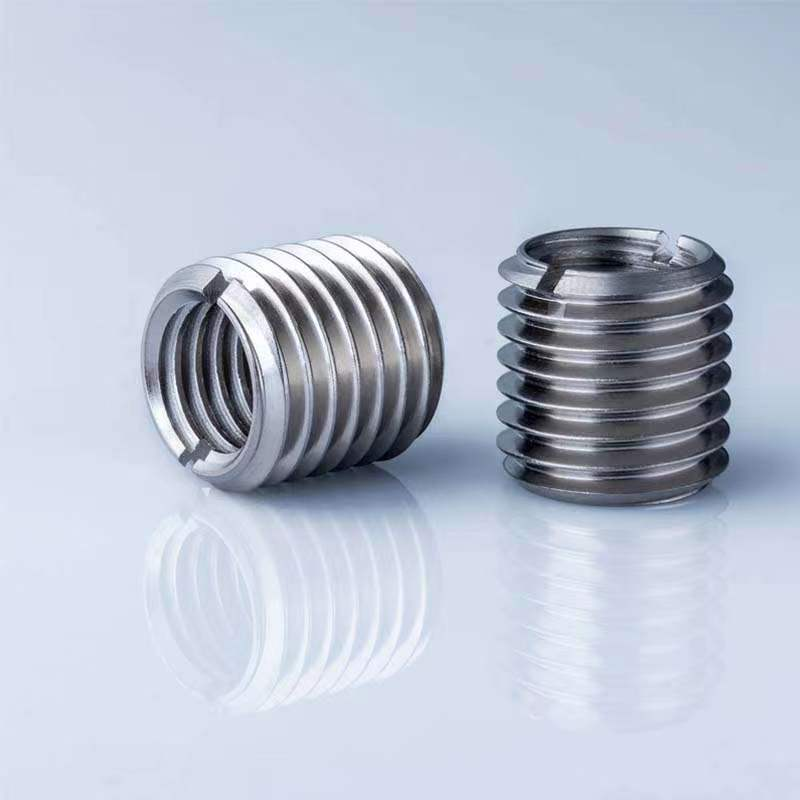

Slotted Drive Double Threaded Inserts: The Ultimate Universal Fastening Adapter
Slotted drive double threaded inserts (commonly called internal-external threaded sleeves) are dual-function fasteners engineered to solve mismatched threading challenges. Featuring external threads that engage with nuts or threaded holes and internal threads accepting screws/bolts, they create robust bridging connections in assemblies requiring material adaptation or thread repair.
Key Structural Advantages：
☆ Slotted Drive Design丨Simplified installation with standard flat-head screwdrivers丨Tool versatility
☆ Dual Thread Interface丨Seamlessly connects dissimilar thread types/sizes丨Thread adapter
☆ Full 360° Engagement丨External threads provide 30% higher shear strength vs. helical coils丨Load distribution
☆ Flush Surface Finish丨Countersunk head sits below material surface丨Aerospace-grade fit
Critical Installation Protocol
1. DRILL: Pilot hole (e.g., Ø4.2mm for M4 ext/M3 int insert)
2. TAP: *Optional* - Only for hardened materials >150HB
3. DRIVE: Insert with slotted driver at 0.6-1.2 N·m torque
4. ASSEMBLE: Secure target component via internal threads
Note: Apply Loctite® 243 on external threads for permanent installations in vibration zones.
Industry-Proven Applications
☆ Electronics Enclosures丨Convert plastic posts to metal threads (UL 94V-0 compliant)
☆ Automotive Panel Alignment丨Bridge aluminum body panels with steel bolts丨Galvanic corrosion prevention
☆ Retrofit Machinery丨Adapt metric threads to imperial hydraulic ports
☆ Medical Device Mounts丨Create sterile-sealed threads in titanium housings
Technical Superiority:
Withstands 2,500+ thermal cycles (-40°C to 120°C) per ASTM B117.
