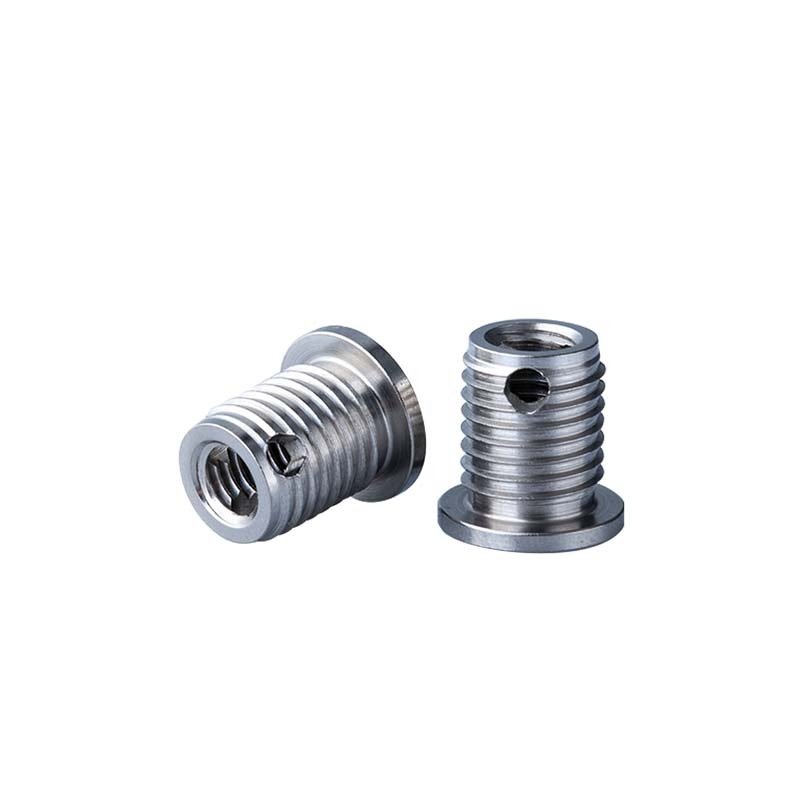

308E Self-Tapping Inserts: Extreme-Environment Thread Protection for Mining, Energy & Aerospace
The 308E self-tapping insert delivers critical thread reinforcement where standard fasteners fail. Engineered with deep-cut locking threads and bainitic steel construction, it achieves 35% higher tensile strength than ISO 3506 Class 80 standards. Its patented flank geometry bites into hardened substrates like chromium-molybdenum alloys and glass-reinforced polymers, creating permanent vibration-resistant threads.
Revolutionary Design Advantages
► HIGH-STRENGTH LOCKING:
1. Asymmetric Thread Profile丨72° pressure angle vs. standard 60°丨**45% higher pullout resistance**
2. Cold-Forged Bainitic Steel丨Rockwell C52 hardness丨**Abrasion immunity**
3. Self-Cleaning Flutes丨Prevent chip buildup in blind holes丨**Oil/grit environments**
4. Sealing Ribs丨Dual polymer-compatible grooves丨**IP69K chemical resistance**
Installation Protocol for Challenging Materials
Drill:
Hard alloys: Ø = Insert Ø + 0.03mm (e.g., 10.03mm for M10)
Composites: Ø = Insert Ø - 0.05mm (interference fit)
Drive:
Impact wrench @ 300-500 RPM (4-6 N·m torque)
Use directional coolant in titanium
Lock:
Final ½ turn shears drive tang, activating locking ribs
Mission-Critical Applications
Sector Application Performance Proof
Rail Transit Bogie frame bolts 丨 EN 15048-6 certified
Petrochemical Flange studs in sour gas service 丨 NACE MR0175 compliant
Mining SAG mill liner plates 丨 Withstands 7G vibration
Aerospace Rocket fuel valve mounts 丨 -196°C to 650°C cycling
Wind Energy Blade pitch systems 丨 5000+ load cycles @ 25kN
Defense Armored vehicle track links 丨 MIL-STD-1312 shock tested
