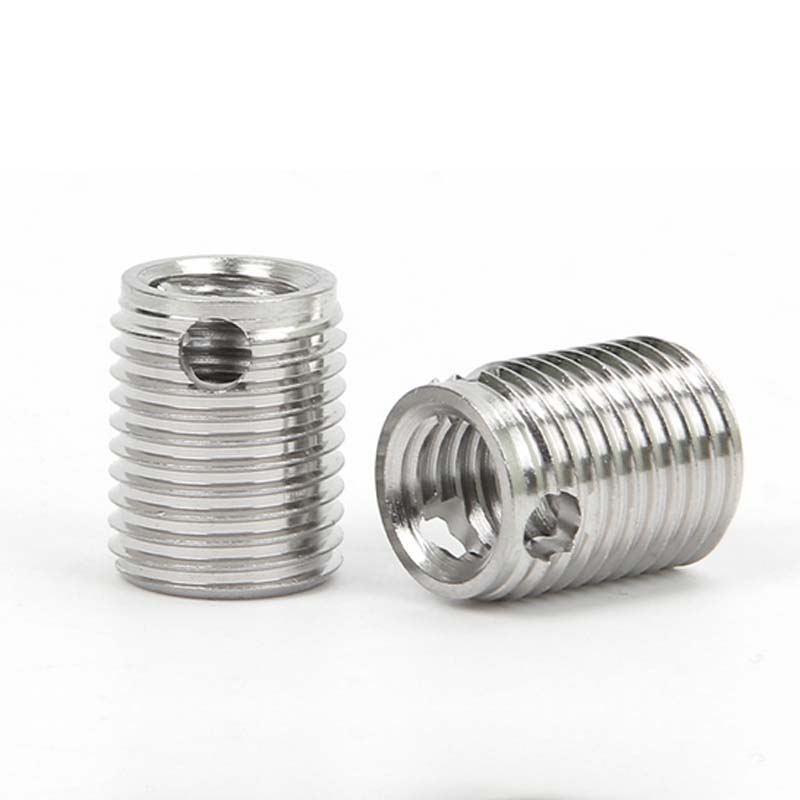

308 Hole-Type Inserts

308 Hole-Type Inserts: High-Strength Vibration-Proof Threading for Aerospace to Electronics

The 308 hole-type insert is the ultimate thread reinforcement solution across extreme-performance industries. Featuring asymmetric locking threads and impact-resistant alloy construction, it delivers 40% higher fatigue life than ISO 14383 standards. From jet engine mounts to 5G antenna housings, its patented design eliminates thread stripping under dynamic loads.

Core Engineering Advantages

► MULTI-SECTOR PERFORMANCE:

1.  Aerospace-Grade Titanium丨Ti-6Al-4V option丨**45% weight reduction**丨AS9100 certified

2.  Asymmetric Thread Flanks丨72° pressure angle丨**Vibration resistance +300%**

3.  Self-Sealing Base丨IP6K9K compliant polymer seal丨**Corrosion immunity**

4.  Chip-Breaking Flutes丨Prevents jamming in blind holes丨**10-second installation**

Dominant Industry Applications

Sector                Critical Use Cases                    Certifications

‌Aerospace‌            Turbine blade retention丨Engine mounts 丨 NASM 1312-18 Rev.5

‌Automotive          EV battery trays丨Transmission housings 丨 IATF 16949

‌Electronics            5G base stations丨Avionics racks 丨 IEC 60068-2-6 compliant

‌Industrial Machinery    CNC spindle mounts丨Hydraulic pumps 丨 ISO 16047

‌Consumer Goods     Robotic vacuums丨Smart appliance chassis 丨 UL 94V-0 flame rated

Installation Protocol

☆ Material Prep:

Metals: Drill Ø = Insert Ø + 0.04mm (e.g., 6.04mm for M6)

Plastics: Drill Ø = Insert Ø - 0.1mm (interference fit)

☆ Drive:

300-500 RPM @ 2.5-4.0 N·m (pneumatic driver)

☆ Lock:

Final ¼ turn shears drive tang丨Activates sealing base

Technical Validation:

22kN ultimate tensile strength (M8 size), survives 100G shock per MIL-STD-810H.
