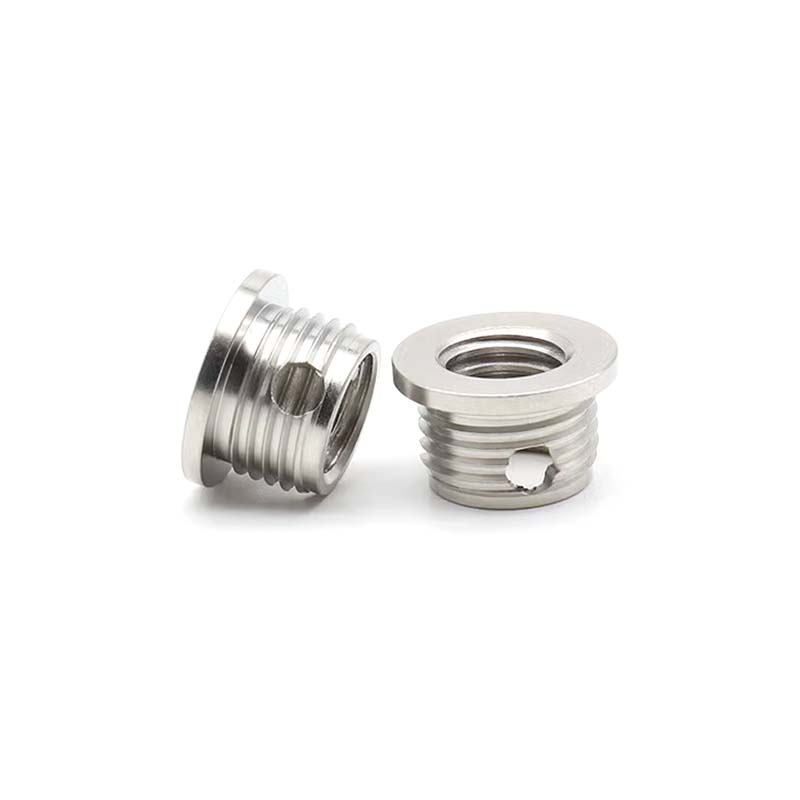

307E Self-Tapping Inserts: Military-Grade Thread Reinforcement for Aerospace & Defense Systems
The 307E self-tapping insert (tri-flute guided thread type) delivers extreme reliability in critical applications. Engineered with precision guide threads and three-drive holes, this insert achieves vibration-resistant installations in hardened substrates where standard fasteners fail. Its MIL-DTL-8950 certified construction resists salt spray (5,000+ hrs), high-G shocks, and thermal cycling from -65°F to 450°F.
Core Performance Advantages
☆ Tri-Flute Drive System丨3-hole design enables 360° torque distribution丨Zero cam-out risk
☆ Guided Lead Threads丨Self-aligning installation in blind holes丨15-second deployment
☆ Ti6Al4V Titanium Option丨45% weight reduction vs. steel丨Aerospace compliance
☆ Hermetic Sealing丨AS18279 F-spec gas-tight threads丨Pressure vessel integrity
Mission-Critical Applications
► AEROSPACE:
- Engine bay access panels (F-35 program)
- Satellite antenna mounts (vibration damping)
► NAVAL SYSTEMS:
- Submarine pressure hull sensors (saltwater corrosion resistance)
- Radar mast bases (ISO 20673 wind load certification)
► GROUND DEFENSE:
- Tank optics mounts (MIL-STD-810H impact tested)
- Comms equipment rails (EMI-shielded threading)
► RAIL TRANSPORT:
- High-speed train bogie covers (EN 50155 certified)
- Signaling enclosures (IP68 dust/waterproof)
► NAVIGATION TECH:
- Inertial measurement units (vibration <0.01g RMS)
- Topographic radar housings (thermal expansion matched)
Installation Protocol
Drill: ØD+0.05mm hole (e.g., 6.05mm for M6 insert)
Drive: Insert with tri-lobe tool at 25-35 RPM (pneumatic driver)
Torque: Final ¼ turn at 4.2 N·m for ASTM F468M compliance
