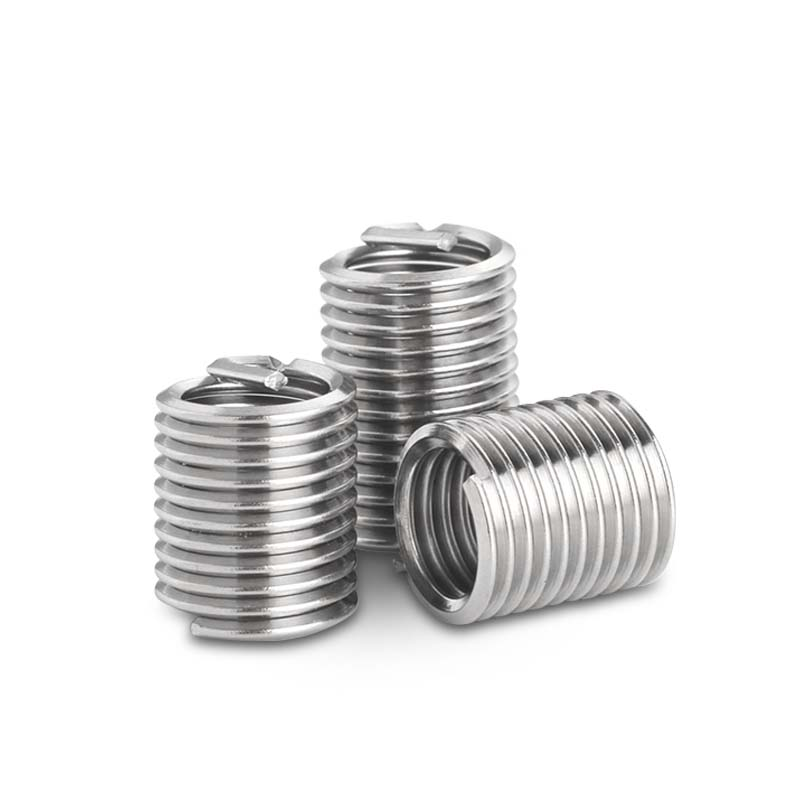

Tang-Type Wire Inserts

Tang-Type Wire Inserts: Aerospace to Construction Thread Reinforcement for Extreme Environments

Tang-type wire thread inserts (standard wire inserts) deliver mission-critical thread reinforcement across industries where failure is not an option. Engineered from cold-rolled 18-8 stainless steel with diamond-coil geometry, they boost thread strength by 300% while providing vibration resistance exceeding MIL-STD-1312 requirements. From rocket engine mounts to seismic bridge joints, these inserts solve stripping, corrosion, and cross-threading failures.

Industry-Specific Performance Advantages

► ENGINEERED FOR EXTREME DUTY:

1.  Aerospace丨Cryo-treated 321SS option丨-200°C to 800°C丨**NASA-STD-6012 compliant**

2.  Automotive丨200% higher fatigue life丨IATF 16949丨**EV battery thread repair**

3.  Machinery丨Anti-fretting coating丨50k+ cycle rating丨**ISO 16047 certified**

4.  Construction丨ASTM A325 equivalency丨22kN shear strength丨**Seismic load approved**

5.  Thread Repair丨Restores original specs丨$0.19/repair cost丨**Metric/Imperial conversion**

Critical Application Matrix

Sector                            High-Stress Applications                            Certifications

Aerospace                     Turbine blade mounts丨Rocket nozzles 丨 NASM1312-20丨AS9100D

Automotive                   EV motor housings丨Chassis reinforcements丨 SAE J2749丨IATF 16949

Industrial Machinery     CNC spindle mounts丨Hydraulic rams 丨 ISO 898-1丨DIN 267-11

Structural Engineering   Bridge bearing plates丨Skyscraper joints丨 AISC 360丨EN 1993-1-8

Thread Restoration        Stripped cylinder heads丨Worn jig plates丨 MIL-STD-1312 Rev.C

Installation Protocol

1.  DRILL: Oversized hole (e.g., 6.4mm for M6 insert)

2.  TAP: Special STI tap (82.5° included angle)

3.  INSTALL: Drive with mandrel until 0.5mm below surface

4.  BREAK TANG: Shear installation tang with reverse punch

5.  INSPECT: Verify depth with Go/No-Go gauge

Pro Tip: Apply molybdenum disulfide on external threads for titanium substrates

Technical Validation:

☆ 10 million vibration cycles (MIL-STD-167-1)

☆ 5,000hr salt spray resistance (ASTM B117)

☆ 35kN tensile strength (M12 size per ISO 3506)
