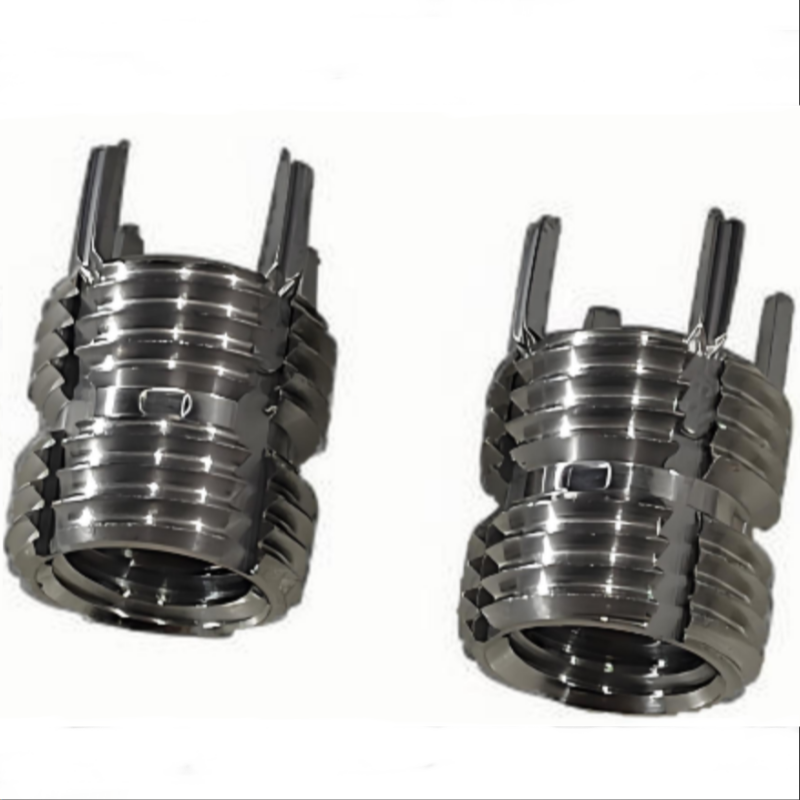

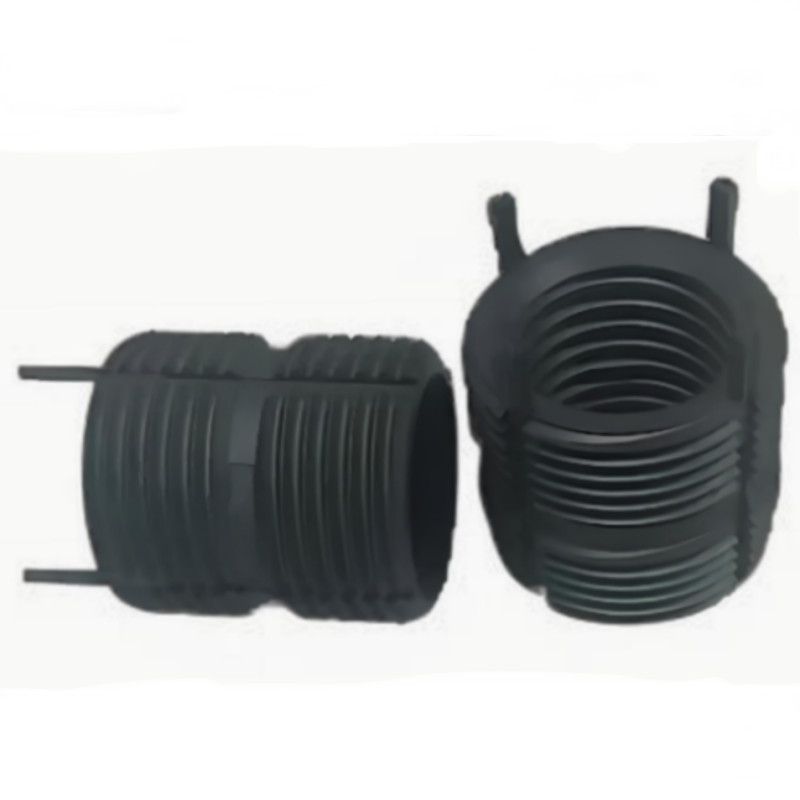

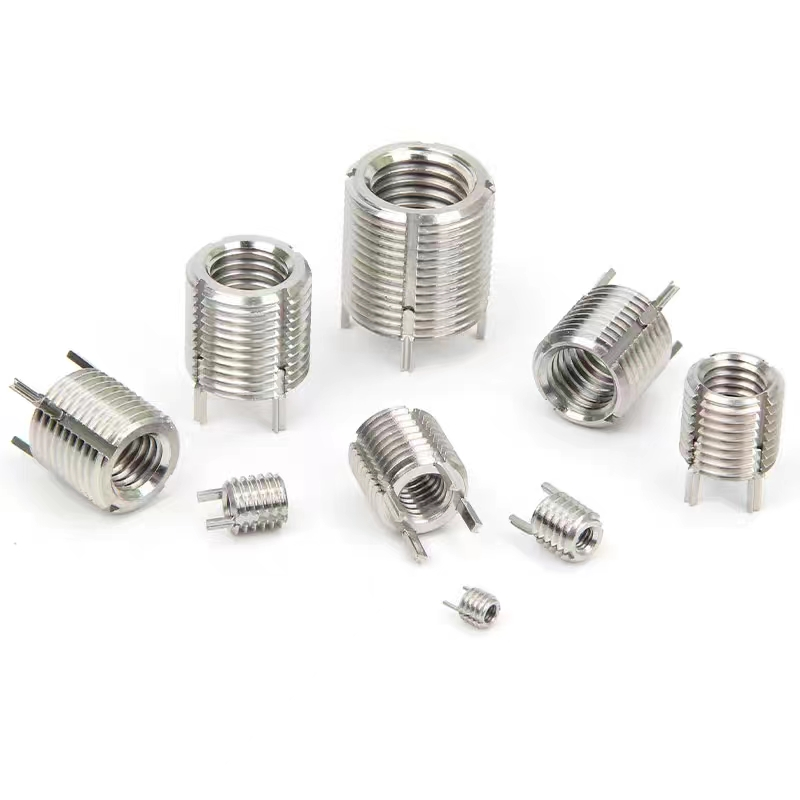

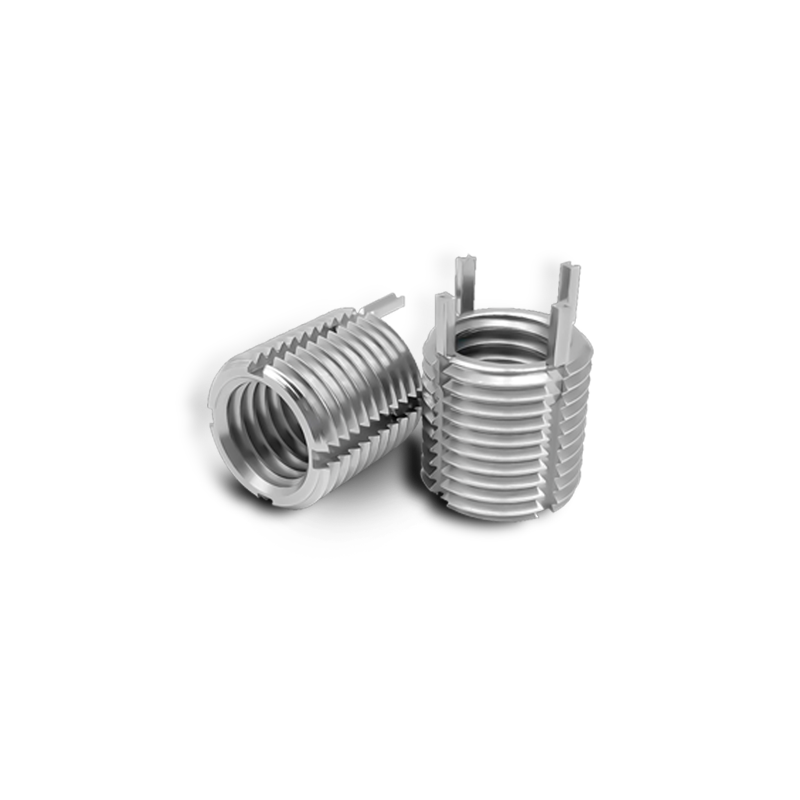

Key-Locked Inserts

What are Key-Locked Inserts? Ultimate Anti-Vibration Thread Repair Solution

Concept:

Key-locked inserts feature a unique locking key mechanism that prevents rotation under extreme vibration or thermal cycling. Made from 300-series stainless steel or Inconel®, 1215MS & A286，they provide 300% stronger threads than original parent material.

Installation Method:

☆ Drill & Tap: Create standard threaded hole (e.g., M12x1.75).

☆ Insert Installation: Screw in insert using installation tool until flush.

☆ Key Locking: Bend locking key into host material’s pre-drilled slot with a punch.

☆ Break Tang: Remove installation tang with reverse hammer.

*Pro Tip: Use high-temperature thread locker (up to 1000°F) for aerospace applications.*

Primary Applications:

☆ Diesel engine blocks (thermal expansion compensation)

☆ Railway bogie frames (anti-vibration)

☆ Hydraulic pump mounts (dynamic load resistance)

☆ Military vehicle armor plating
